Einzelheiten zu den Produkten

Heim Produits

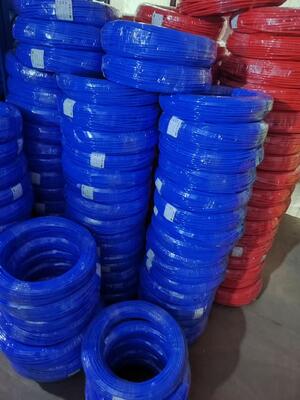

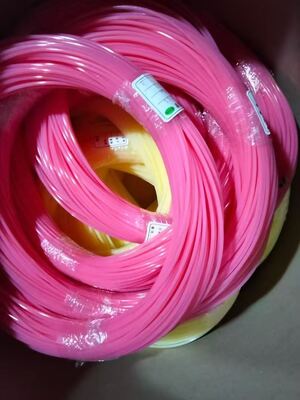

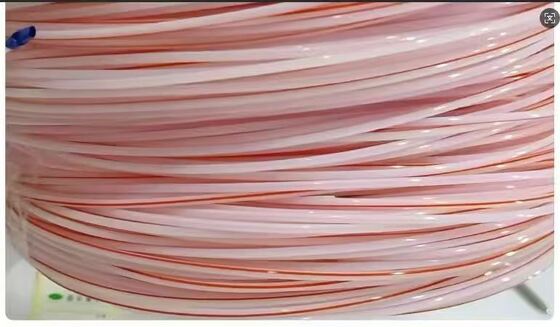

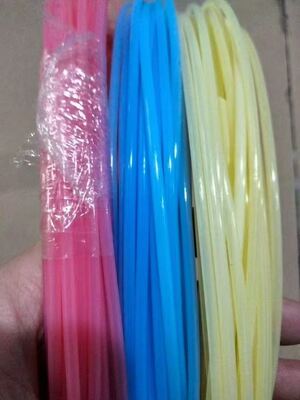

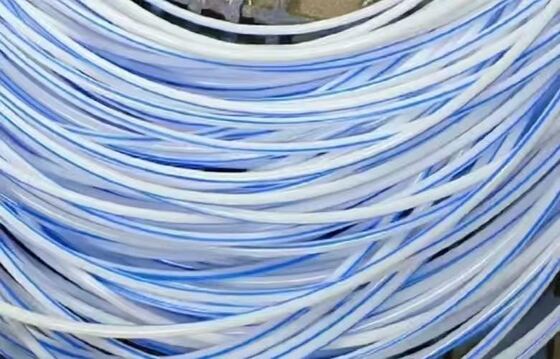

High Temperature Resistance PTFE Tube with Chemical Resistance and Self-Extinguishing Properties for Electronic Use

Name: High Temperature Resistance PTFE Tube with Chemical Resistance and Self-Extinguishing Properties for Electronic Use
Brand: Changzhou Longchuang Insulating Material Co., Ltd.
SKU: 10mm
Price: 0.05 USD
Availability: InStock

Markenname:	None
Modellnummer:	10mm
MOQ:	1
Preis:	negotiable
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union
Versorgungsfähigkeit:	10000 Meter Tag

Einzelheiten

Produktbeschreibung

Einzelheiten

Herkunftsort:

Jangsu China

Zertifizierung:

ISO9001

Temperaturbeständigkeit:

-65 bis 260 °C

Entflammbarkeit:

UL, VW-1

Isolierung:

Hoch

Chemische Beständigkeit:

Säure-Alkali-beständig

Farbe:

Schwarz, Rot, Gelb, Weiß, Blau, Rosa, Lila

Verschleißfestigkeit:

0,05 bis 0,10

Löschfähigkeit:

Selbstverlöschend

Strom:

Hoher Stromwiderstand

Verpackung Informationen:

Karton

Versorgungsmaterial-Fähigkeit:

10000 Meter Tag

Hervorheben:

High temperature resistance PTFE tube

Chemical resistant PTFE tubing

Self-extinguishing PTFE tube electronics

Produktbeschreibung

PTFE Non-Shrink Tubing

PTFE (Polytetrafluoroethylene) non-shrink tubing, also known as Teflon tubing, is a semi-rigid tube manufactured by extruding and sintering PTFE resin. It is non-heat-shrinkable (shrink temperature ≥ 320°C), maintaining stable dimensions under normal operating conditions.

Key Features

Temperature Range: -200°C to +260°C (continuous use)
Chemical Resistance: Resistant to almost all acids, alkalis, solvents, oxidizers (except fluorine, molten alkali metals)
Electrical Properties: High dielectric strength (≥55kV/mm), low dielectric constant (2.1), high volume resistivity (10¹⁸Ω·cm)
Low Friction: Lowest coefficient of friction among solids (≤0.04), non-stick, easy to clean
Mechanical: High strength, wear-resistant, creep-resistant, aging-resistant
Certifications: RoHS, REACH, FDA food contact compliant
Flammability: UL94 V-0 (self-extinguishing)

Specifications

Color: Natural translucent white, custom colors available
Voltage Ratings: 150V / 300V / 600V
Wall Thickness: Standard, thin, heavy
Sizes: Inner diameter 0.3mm ~ 20mm, custom available

Applications

Electronics: High-temperature wire harness, motor, transformer insulation
Chemical/Semiconductor: Corrosive fluid, high-purity chemical, specialty gas transport
Medical: Catheters, infusion tubes, steam sterilization lines
New Energy: EV battery coolant, high-voltage wire insulation
Aerospace: Extreme temperature, corrosion-resistant tubing
Food/Pharma: FDA-approved food transfer, sterilization line
